M-4

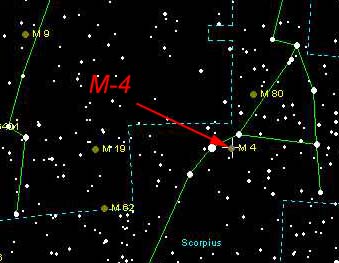

M-4 is a  very large and diffuse globular.  It makes a striking contrast to the very compact globular M-80, also nearby (about 4 degrees away) in the constellation Scorpius.  . M-4 is about three times the diameter of M-80 and only about 1 degree from the red star Antares.  Although M-4 is bright, it is often difficult to see for northern observers.  It is a diffuse object, usually low in the south and often hidden by light pollution.
    Constellation:  Scorpius

    Size:  30 arcmin

    Magnitude:  5.4

    Magnitude Tip:  10.8

    RA:  16h 23m 32.6s

    Dec: -26 d 31m 30s


Scope: Orion MAK 500
Nikon w/ Kodak 800 MAX Film
Focal Ratio: f5.5
Exposure: 10 min
Scope:  8" LX 200 SCT
MX-5C CCD Camera & STAR 2000 Auto Tracker
Focal Ratio: f3.3
Exposure:  10 min
Scope:  8" LX 200 SCT
MX-5C CCD Camera & STAR 2000 Auto Tracker
Focal Ratio: f4.8
Exposure:  5 min
Scope:   8" LX 200 SCT
MX-5C CCD Camera & STAR 2000 Auto Tracker
Focal Ratio: f6.6
Exposure:  10 min
Scope:  8" LX 200 SCT
MX-5C CCD Camera
Focal Ratio: f10
Exposure:  5 min
